Fisher XLT-17 Liquid Leak Detector


In stock 2 currently available

Buy with confidence:

  • Hassle-Free Returns
  • Kellyco Averages 4.8 Stars from 30,000+ Reviews
  • h
  • Expert Telephone Support

Product highlights

with Hard Carrying Case & Much More
Product Description

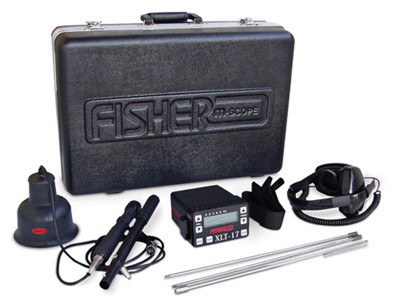

Fisher XLT-17 Liquid Leak Detector
with Hard Carrying Case & Much More

Fisher’s XLT-17 is a liquid leak detector that finds leaks in four easy steps: by electronically amplifying leak sounds, selectively filtering out noise, isolating the leak sound, and leading the operator to the source of the leak. The XLT-17 leak detector is built to perform and priced to compete. The XLT-17 comes standard with Fisher’s Multi-Sensor which has superior leak detection capabilities. The Multi-Sensor is in an extremely compact design with improved sensor electronics and better sensitivity to leaks.

2 Year Warranty: Fisher warrants the XLT-17 to be free of defects in materials and workmanship when it is shipped from the factory. The terms of this warranty are fully explained in a warranty registration card that accompanies the instrument. Complete factory and field service facilities support the warranty.

*Please call 1-888-KELLYCO for warranty information outside the United States.


  • Frequency :
    • 60 Hz - 6 kHz, Gain = 60db
    • 20 Hz - 60 kHz, Gain > 55 db
  • Warranty : 2 Year Limited
  • Total Weight : 10 lbs (4.5 kgs)
  • Audio Output : High Performance Headphones (54 ohms)
  • Visual Output : LCD Bar Graph and 2-Digit Numeric Display
  • 4 Frequency Filters : Low Pass, High Pass, Band Pass and All Pass

  • Manufacturer Fisher
  • Manuals

    Instruction Manuals

  • Quick Look Built for reliability, the Fisher XLT-17 liquid leak detector is equipped with a Fisher‚Äôs Multi-Sensor which has superior leak detection capability.
  • SKU 12-1300
  • Product Dimensions 22.50x16.00x7.54
  • Manufacturer SKU XLT17
  • Product Type Commercial Equipment
  • Warranty No
  • Interchangeable Search Coil No
  • Arm Rest Strap No
  • Adjustable Shaft No
  • GPS No
  • Audio Tones No
  • Depth Indication No
  • Programmable Target Id No
  • Target Id No
  • Pinpoint Mode No
  • Vibration Mode No
  • Search Flashlight No
  • Backlit Display No
  • Volume Control No
  • Bluetooth Compatible No
  • Interchangeable Headphones No
  • Rechargeable System No
More Information

Fisher XLT-17 Liquid Leak Detector

Technical Specifications:

  • 2 Year Warranty
  • Frequency :
    • 60 Hz - 6 kHz, Gain = 60db
    • 20 Hz - 60 kHz, Gain > 55 db
  • Filter Types and Frequency Ranges :
    • All Pass : 60 Hz - 6 kHz
    • Low Pass : Adjustable Cut-Off Frequency from 150 Hz - 2.4 kHz
    • Band Pass : Adjustable Center Frequency from 150 Hz - 2.4 kHz
    • High Pass : Adjustable Pass Band Frequency from 150 Hz - 2.4 kHz
  • Output Indications :
    • Audio : High Performance Headphones (54 ohms)
    • Visual : LCD Bar Graph and 2-Digit Numeric Display
  • General :
    • Grade of Protection : Splash Proof
    • Battery Life : 50 Hours (approximate)
    • Weight : 10 lbs (unit in carrying case)
    • Carrying Case Dimensions : 21x6x14"
    • Battery Quantity / Type : Two, 9 Volt Alkaline
    • Battery Test : Automatic, Real Time Battery Level Indicator


  • Last Setting Memory Feature
  • Detects and Pinpoints Liquid Leaks in Pipes
  • Tactile Keypad & Digital Display for Easy Use
  • Improved Headset for Clearer Sound Response
  • Automatic Battery Test - Real Time Voltage Level
  • Shielded Sensor for Reduced Response to Outside Noise
  • Heavy Duty Carrying Case Protects the XLT-17 from Damage
  • Compact Control Box that can be Worn on the Belt, Around the Neck, or Over the Shoulder with an Attachable Strap
